Single Row Cylindrical Roller SL183020 Bearings German UCO Full Complement
SL183020 Cylindrical Roller Bearing Description,
1. SL183013 bearing is a cylindrical roller bearing with an inner diameter of 65mm, an outer diameter of 100mm, and a thickness of 26mm.
2. Cylindrical roller bearing rolling body is a radial rolling bearing of cylindrical roller.
3. The internal structure of cylindrical roller bearings uses rollers arranged in parallel.
4. Spacers or spacers are installed between the rollers, which can prevent the tilting of the rollers or friction between the rollers, and effectively prevent the increase of rotational torque.
SKF cylinderical roller bearing, Specification,
1. SL full complement cylindrical roller bearings are usually guided by two ribs of a bearing ring.
2. The cage, roller and guide ring form a combined assembly, which is generally a separable bearing.
3. This type of bearing is easy to install and disassemble, especially when the inner and outer rings are required to have an interference fit with the shaft and housing.
4. In addition to full cylindrical roller bearings, in addition to bearing large radial loads, they can also support overturning moments. Therefore, fixed bearings are commonly used.
5. Full-roller cylindrical roller bearings are generally edited with double ribs on the outer ring and single ribs on the inner ring, ie NJ ... V, NUP ... V, RNU ... V, etc., similar to those with cage Compared with structured roller bearings, it has the advantages of large rated load and simple structure.
Models of other parts of full complement cylindrical roller bearings,
SL183016
SL192316
SL182917
SL183017
SL192317
SL182918
SL183018
SL192318
SL182919
SL182920
SL183020
SL192320
SL182922
SL183022
Specification,
| d | 100mm | |
| D | 150mm | |
| B | 37mm | |
| D1 | 134mm | |
| d1 | 115.7mm | |
| E | 140.2mm | |
| Rmin | 1.5mm | |
| S | 4mm | Axial displacement distance |
| m | 2.15 | quality |
| Cr | 219000N | Basic rated dynamic load, radial |
| Cor | 310000N | Basic rated static load, radial |
| Cur | 40500N | Fatigue limit load, radial |
| nG | 2600 1/min | limiting speed |
| nB | 2010 1/min | reference velocity |

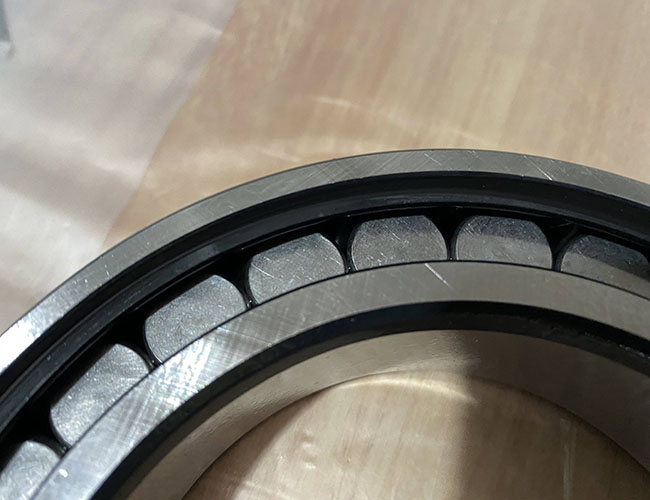

Picture Show,
Why choose us,
1. NO MOQ, 1 PCS order quantity
2. If there is any quality problem, we support 7 days refund
If you need, welcome contact us for price list.
